Used in clothing or bags and other industries need to spend on the layout of the requirements of the grid.

　　Function of all keyboard and mouse operation. This software does not provide automatic layout due to the use of the automatic layout of the flower.

　　Projection ratio 1:1. error 2mm.

　　Suitable for fabrics: printed fabrics or printed leather, leather.

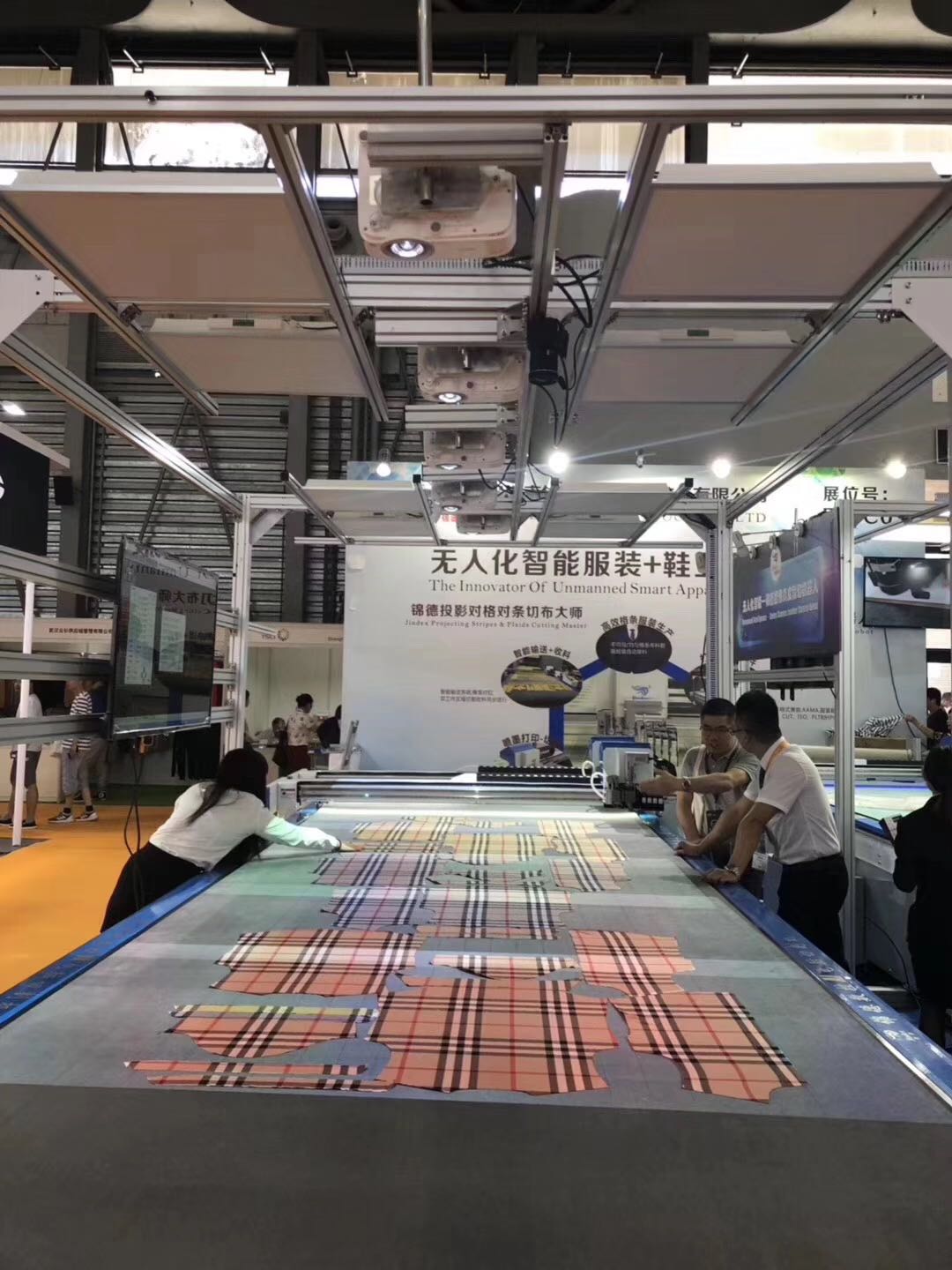

　　Support multi projector splicing.

      Software characteristics

　　Support the deformation recovery capability of ordinary projectors

　　Import slicing data in AAMA format

　　Import general drawing DXF/CUT pattern data

　　Direct import of PLT splicing fitting pattern data

　　Compatible with reading clothing CAD output of AAMA-DXF / Plt /CUT files.

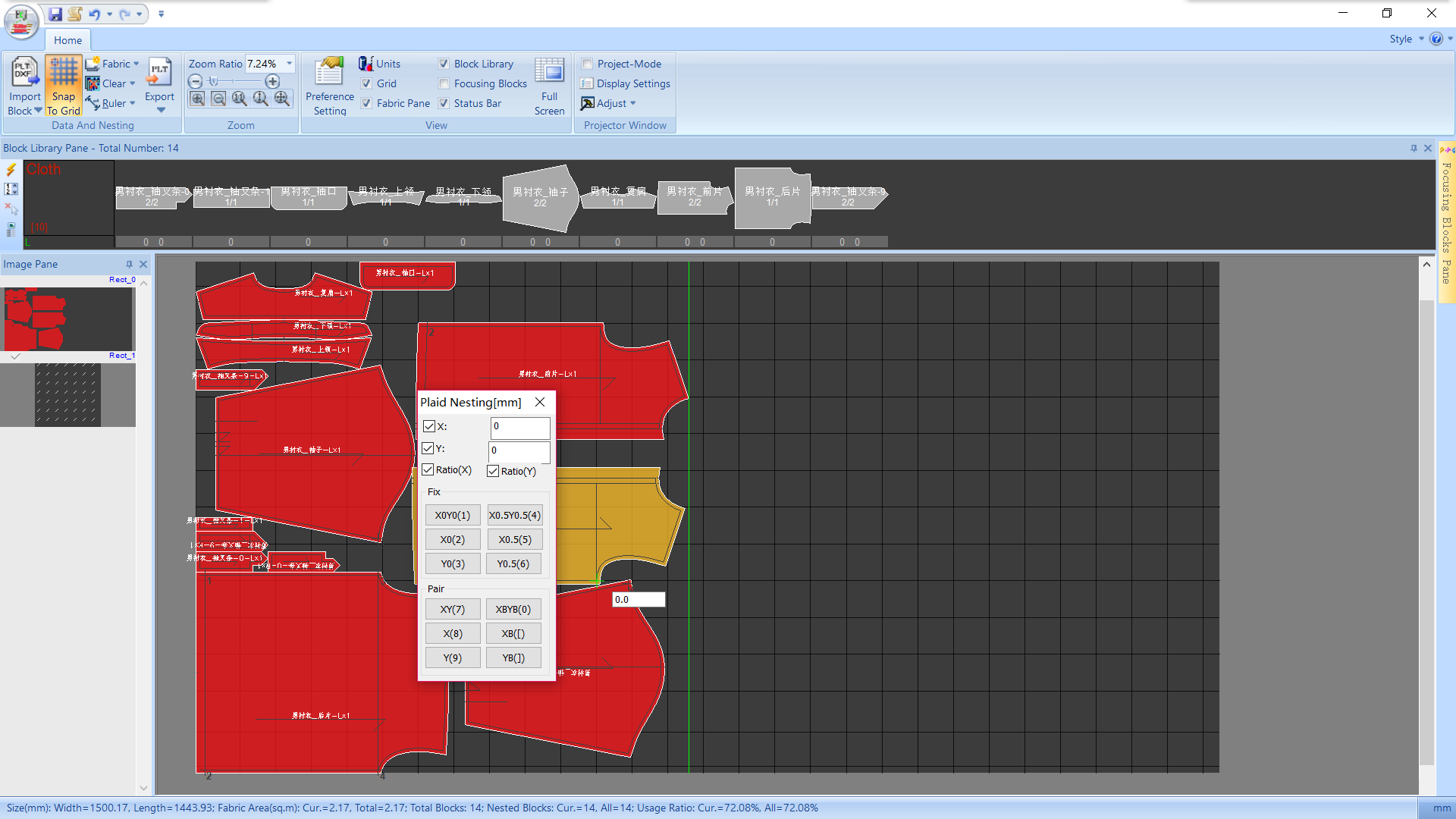

Support grouping and layout according to each set, size or piece, and support grouping in both XY and single directions.

　　Support manual to the lattice row. Support automatic to lattice row, greatly improve work efficiency, improve cloth utilization rate.

　　Support uniform lattice and uneven lattice manual row and automatic row.

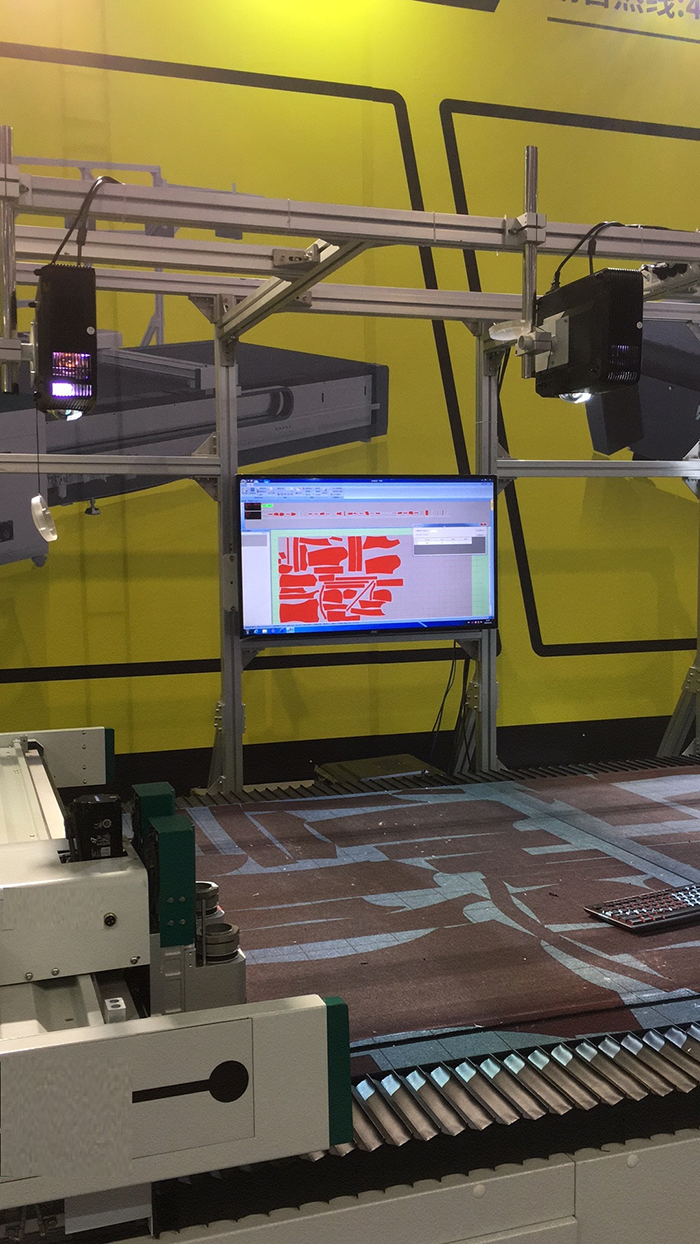

　　Support multi-projection splicing.

　　Support arbitrary lattice adjustment, perfect adaptation to garment factory fabrics.

　　Support for lattice pairing point settings.

　　At the same time, support the layout of ordinary materials separated from projectors
