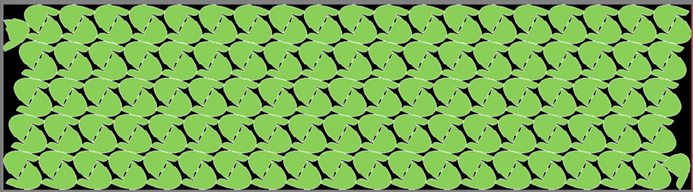

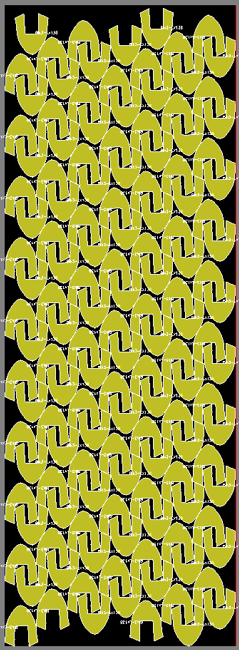

Crane Sheet/Shoe Pattern Intelligent Making Software supports automatic nest after importing pattern files in DXF/PLT/CUT format, and supports the nesting of data files in DXF/PLT/CUT format. This software supports custom fabric‘s size and custom patterns spacing. This software supports timing automatic nest,supports the simultaneous automatic nest of multiple fabrics. Supports manually placing the size teeth on the pattern to facilitate the collection of materials after the cutting is finished. The software supports intelligent tiling of individual patterns, intelligent continuous tiling with multiple patterns of different shapes, and models of different sizes. This type of nest is suitable for high-volume production factories such as shoe factories.

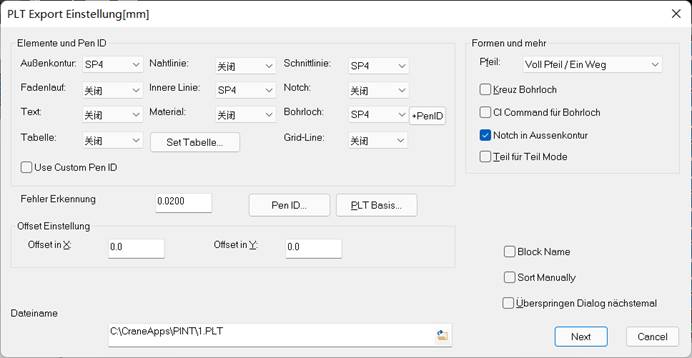

The software export format supports file formats such as HPGL/DXF/CUT. DXF includes AAMA-DXF and AUTOCAD-DXF. The over cutting and over cutting angle can be set in the PLT and CUT file.

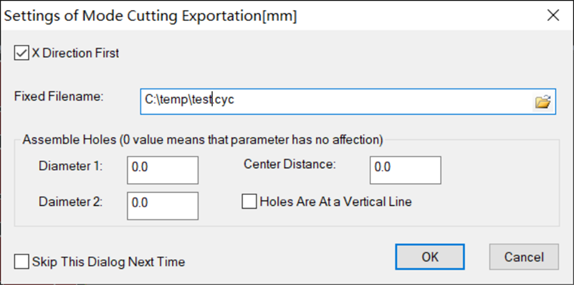

Mold Cutting Support：In order to adapt to a variety of different materials of bulk mold cutting, the software can output Mold-cut format. Specifically, in the output nesting, the center point coordinates of each pattern and the rotation angle of the nesting. List List List List In order to improve stamping efficiency, the software supports the generation of assembly lists and cutting sequence displays for multiple molds in the nesting map. Allows the operator to assemble multiple tools sequentially at the production site.
